Amtrol - Hydronic Heating and Chilled Water Tanks

Extrol® Hydronic Expansion TanksAir SeparatorsAir & Dirt EliminationBuffer TanksCompression Tanks

Extrol® Hydronic Expansion Tanks

Hydronic Expansion Tanks

For More Information:
Manufacturer's Site

Extrol ASME commercial expansion tanks are designed to control pressure in closed hydronic heating & cooling systems. Available in diaphragm, partial acceptance bladder and full acceptance bladder designs, these tanks range in size from 6.4 gallons (24 liters) to 3,963 gallons (15,000 liters). Offered with maximum working pressures up to 300 PSIG (21 bar), Extrol is effective at maintaining positive pressure in a wide variety of HVAC systems.

FEATURES

Diaphragm Design (AX Series):
  • Fixed Butyl/EPDM Diaphragm: Industry’s Thickest.
  • Factory Pre-Charge: 12 PSIG.
  • Max. Operating Temperature: 240º F.
  • 3-Year Warranty.
Full Acceptance Bladder Design (L Series):
  • Replaceable Butyl Bladder: Industry’s Thickest.
  • Factory Pre-Charge: 12 PSIG.
  • Max. Operating Temperature: 240º F.
  • 3-Year Warranty.
Partial Acceptance Bladder Design (LBC Series):
  • Replaceable Butyl Bladder: Industry’s Thickest.
  • Factory Pre-Charge: 12 PSIG.
  • Max. Operating Temperature: 240º F.
  • 3-Year Warranty.

Air Separators

Air Separators

For More Information:
Manufacturer's Site

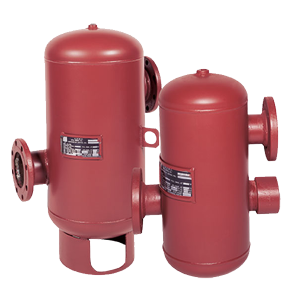

Amtrol Air Separators

Amtrol ASME tangential air separators are designed to create a low velocity vortex that separates and removes entrained air from fluids circulating in closed, heating and chilled water systems. Available in 1” to 24” sizes with optional stainless steel strainer to collect unwanted system debris.

FEATURES

  • Eliminates 99% of Entrained Air.
  • Removable, 304 Stainless Steel Strainer Models Available.
  • Ring Base Standard on 5-AS(L) through 24-AS(L) Models.
  • Working Pressures Offered: 125, 150, 175, 250 and 300 PSIG.
  • Max. Operating Temperature: 350º F.
  • 3-Year Limited Warranty.

Air & Dirt Elimination

Air & Dirt Elimination

For More Information:
Manufacturer's Site

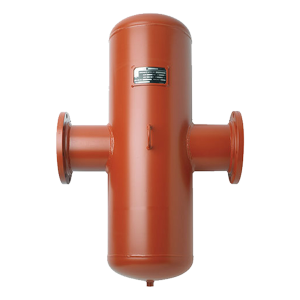

Amtrol Air and Dirt Eliminators

Amtrol ASME Air and Dirt Separators are designed to eliminate entrained air and remove dirt particles in closed loop, heating and chilled water systems. A patent-pending filter, consisting of five concentric stainless steel mesh screens, removes particles as small as 5 microns. All models feature a top connection for an air vent and a bottom connection for a blow-down valve.

FEATURES

  • Patent-Pending Filter Separates Dirt and Debris as Small as 5 Microns to Reduce System Wear.
  • Available in 2” through 12” Sizes.
  • Max. Working Pressures Offered: 125 and 150 PSIG.
  • Max. Operating Temperature: 450º F.
  • 3-Year Limited Warranty.

Buffer Tanks

Buffer Tanks

For More Information:
Manufacturer's Site

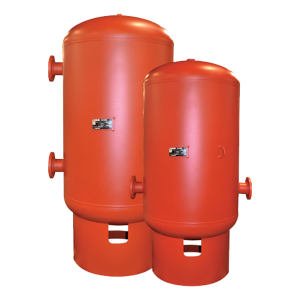

Amtrol Buffer Tanks

Amtrol ASME Buffer Tanks add capacity to non-potable, closed systems to help reduce cycling, improve temperature control and provide more consistent system operation. Available for chilled water and hot water applications. All Amtrol Buffer Tanks are made at our ISO 9001:2015 registered facilities.

FEATURES

Chilled Water Buffer Tanks
  • Internal Baffle Helps Properly Circulate Water.
  • Available up to 1,040 Gallons.
  • Connections from 3″ to 12″.
  • Max. Working Pressure: 125 or 150 PSIG.
  • Max. Operating Temperature: 450° F.
  • Seismic Restraints, Sensor Ports and Grooved Pipe Connections Available.
Hot Water Buffer Tanks
  • 2-Port Tanks Add System Mass.
  • 4-Port Tanks Add System Mass and Hydraulic Separation.
  • Available up to 300 Gallons.
  • Connections: 2″, 3″ and 4″
  • Max. Working Pressure: 125 or 150 PSIG.
  • Max. Operating Temperature: 450° F.
  • Seismic Restraints, Sensor Ports and Grooved Pipe Connections Available.

Compression Tanks

Compression Tanks

For More Information:
Manufacturer's Site

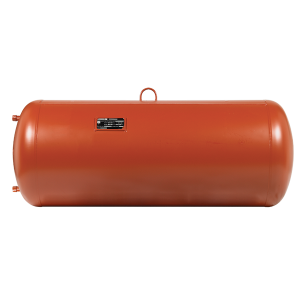

Compression Tanks Amtrol

Designed to be used in closed, non-potable hydronic heating and chilled water systems. Air-over-water design features a maximum operating temperature of 450º F (232º C). All Amtrol Compression Tanks are designed and constructed to ASME Section VIII, Division 1 Standards.

FEATURES

  • For Use in Closed, Non-Potable Hydronic Heating or Chilled Water Systems.
  • Designed to ASME Section VIII, Division 1 Standards.
  • Max. Operating Temperature: 450º F.
  • Max. Working Pressures Offered: 125 and 150 PSIG
  • 1-Year Warranty.
