Condair Electric / Gas / Steam Exchange Humidifiers

DL SeriesRS SeriesUS SeriesGS SeriesEL SeriesSE Series

DL Series

Humidifier

For More Information:
Manufacturer's Site
Condair DL Series

The Condair DL hybrid humidifier leverages the two humidification principles of atomization and evaporation. This results in the sustainable resolution of critical problems which can emerge when these technologies are used individually. The humidification system is, therefore, the first choice regarding hygiene, energy efficiency and cost-effectiveness.

Atomize

The humidifying water is atomized by stainless steel atomizing nozzles at low pressure. The atomizing nozzles have an adjustable spray output and are optimally distributed over the entire device cross-section. This layout achieves a high evaporation efficiency and a uniform humidity distribution.

Evaporate

The premium ceramic evaporator unit captures the humidifying water and ensures the best possible re-evaporation. The ceramic plates thus allow the most effective utilization of the high-grade humidifying water. At the same time, they prevent water accumulation in downstream components. Behind the Condair DL humidifier, there is aerosol-free and hygienically humidified breathable air.

Intuitive Touch Controller

With the Condair touch controller, you have all devices and process data at a glance. Operational data can be called up in real-time using a detailed data history. Via the IoT (Internet of Things) connection, data can be transferred to the Condair Cloud, viewed and analyzed online.

Features:

  • Efficient low-pressure systems
    The low-pressure mode of operation translates to significant energy savings due to less compression work
  • Aerosol-free air
    Using the patented ceramic evaporator unit, the humidifying water is separated from the air current and effectively evaporated
  • Effective germicide
    The HygienePlus® concept includes a series of measures for effective germ neutralization. The critical element here is the patented silver ionization guaranteeing reliable hygiene and safety
  • Precise control
    The combination of the spray circuit drive and continuous water quantity control allows precise control accuracy

RS Series

Humidifier

For More Information:
Manufacturer's Site
Condair-RS-Series

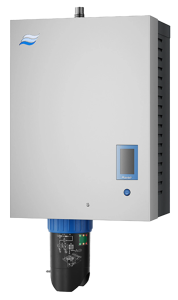

The RS Series is an advanced resistive steam commercial/industrial humidifier with high-quality heating elements for accurate humidity control.

The RS Series humidifier can be accurate to ±1% RH when using the SSR option with a high precision humidistat. It is applicable for potable or DI/RO water. For potable water applications, the scale collector tank option saves time and money during maintenance. The scale tank collects minerals and is easily removable for the disposal of scale.

Precise Humidification Control

All RS Series humidifiers have an advanced controller with a display for precise and efficient relative humidity control. The humidifier can integrate with a humidistat, a relative humidity sensor, or connect to a central Building Management System (BMS) for maximum flexibility.

The controller provides readout and adjustment of all operating parameters. The humidifier will make service adjustments automatically or trigger a shutdown while displaying the function requiring operator attention.

Economic Humidifier

RS Series humidifiers provide lower initial installation costs for the customer. Efficient steam conversion rates and minimal energy losses due to low hot water drain rates also reduce operating costs.

These units provide clean humidification, reducing air-borne contaminants and subsequent health-related employee absenteeism. Correct interior humidity levels in winter maintain comfort at lower temperatures and may reduce heating costs.

Features:

  • Precise RS tolerances for humidity-critical applications
  • User-friendly touchscreen controller
  • Standard building automation support with integrated BACnet (IP Master/Slave and MSTP Salve) and MODBUS.
  • USB port to download trending data, as well as to perform software updates
  • Scale collector tank to make minor maintenance quick and easy
  • Self-diagnostics confirm optimal operational efficiency and reduce servicing costs

US Series

Humidifier

For More Information:
Manufacturer's Site
Condair US Series

The new US Series of ultrasonic humidifiers meet the highest standards for cost-effective and efficient performance. Designed for ease of installation, simplicity of operation, reliability, energy efficiency and control accuracy, the US Series is ideally suited for many applications.

Using piezoelectric transducers operating at 1.7 MHz, the US Series generates an ultra-fine (1–3 micron) cool mist. This mist is distributed directly into the space using a quiet and efficient Blower Pack. Unlike steam humidifiers that boil water, ultrasonic technologies offer some of the lowest energy humidification on the market, decreasing direct energy costs by 90%.

Additionally, the mist cools the air slightly as it evaporates, generating more potential savings.

With an easy and quick installation, the Condair US Series is available in four different capacities; Medium housing: 7 lbs/hr (3 kg/hr), 13 lbs/hr (6 kg/hr), 20 lbs/hr (9 kg/hr) and Large housing: 40 lbs/hr (18 kg/hr). The unit cabinet includes everything except the mist distribution system (Blower Pack) and water treatment.

Hygiene

Stagnant water poses a risk of microbial contamination. The US series features hourly flushing cycles (when operating) and automatic drain if there is no demand to prevent water stagnation. On standby, the unit will complete an entire flushing cycle every 24 hours for additional safety. Additionally, the US series features:

  • Stainless steel chemically polished water tank
  • UV water treatment
  • MERV 12 air intake filter
  • Antimicrobial and antistatic internal components

Blower pack

In space mist distribution system:

  • High efficiency of absorption
  • Available built-on or remotely installed for optimal flexibility
  • Fast absorption <12 feet
  • Antimicrobial mist channel

GS Series

Humidifier

For More Information:
Manufacturer's Site
Condair GS Series

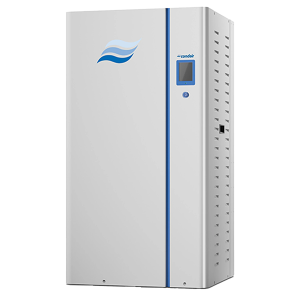

The industry’s first fully condensing and efficiency-leading humidifier

With over two decades of experience manufacturing gas-fired humidifiers, Condair always strives to build on past inventions to create genuine innovation that embraces design and functionality. The latest GS series highlights all of Condair’s high-priority objectives and customer values while incorporating them all into their most efficient series so far.

Combining eco-friendliness with cutting-edge technology

The continuously rising costs associated with electrical power have created an ever-growing demand for gas-fired technology, which provides a cost-effective and environmentally friendly option for humidification.

For these reasons, Condair has been striving to develop a new gas-fired humidifier that uses the more economical natural gas and operates under the high-efficiency classification.

Condair is proud to present the GS Condensing System (CS) model, which provides substantial condensing efficiency with an average of over 90%.

Another option from the GS Series is the Low-Emissions (NX) model that Condair created specifically to meet California’s emission regulations. The GS presents a high-value model due to the ease in both operation and installation while guaranteeing a fast payback for High-Efficiency upgrades.

EL Series

Humidifier

For More Information:
Manufacturer's Site
Condair EL Series

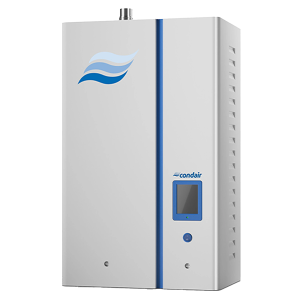

Tried, true, and trusted for over 40 years! Condair EL Series electrode steam humidifiers offer complete application flexibility to systems engineers, contractors and customers needing a commercial or industrial humidifier. They can be integrated into central HVAC systems or placed in specified locations for individual room control. Models are available to serve small or large areas with outputs of 5–200 lbs/hr.

Electrode steam humidifiers are economical, simple, and reliable solutions for in-duct or direct room humidification. The EL has an economic capital cost yet is a highly dependable solution for hygienic steam humidification.

Easy To Service

The Condair EL humidifier senses when the cylinder is full of scale and advises the user to replace it. The process is quick and straightforward: drain the unit, remove the old cylinder, and replace it with a new one. This easy maintenance keeps downtime to a minimum and maintains humidity control.

How It Works

The electrode heating system ensures reliable steam production from ordinary drinking water without additional water treatment. The particular grid structure of the electrodes provides the largest possible surface area. The composition used for the electrodes ensures maximum power transmission to the humidifying water, ensuring reliable operation, effective steam production, and extended operating periods.

Precise Control

All EL Series Humidifiers have an advanced touch screen controller for precise and efficient relative humidity control. The humidifier can integrate with a humidistat, a relative humidity sensor, or be connected to a central Building Management System (BMS) for maximum control flexibility.

Comfortable Remote Control

The EL Series steam humidifier includes an interface for connection to standard BMS systems allowing for remote monitoring and control of your humidifier. For several humidifiers as part of a more complex installation, the networking system provides a detailed overview of the system with rapid and early response in operation.

SE Series

Humidifier

For More Information:
Manufacturer's Site
Condair SE Series

A powerful solution for your industrial and commercial humidification needs

Condair’s team of industry-leading experts designed their Steam Exchange Humidification Systems to ensure reliable humidity from steam boilers throughout your facility.

The SE Series humidifiers generate clean, hygienic, atmospheric steam. All they require is a connection to your facility boiler as a power source. Fresh water becomes clean boiler steam by passing through top-quality 316 stainless steel heat exchangers. This innovative humidification technique prevents chemical boiler elements from affecting your building’s air supply.

As a fully packaged humidifier powerhouse, the SE Series includes all necessary parts and components, most of which will ship within the cabinetry. With the customer in mind, the SE Series delivers worry-free installation, reliable function, and fast maintenance.

The Premium SETC and the Rugged Outdoor SETC model are available in capacities ranging from 50–1050 lbs/hr (23–475 kg/hr) when supplied with facility steam pressure at a maximum of 15 psi (1 bar).
