Thermal Fluid / Hot Oil Heaters

FT-C FT-A FT-N Hopkins Alliance

FT-C

Thermal Fluid / Hot Oil Heaters

For More Information:
Manufacturer's Site
Fulton-FT-C

Fulton’s vertical coil design thermal fluid (hot oil) heater offers a compact, fuel-fired 4-pass heater design capable of operating temperatures to 750°F (400°C) with heater sizes from 800,000 BTU/hr to 14,000,000 BTU/hr output. The heater is designed to allow for high fluid velocities and low film temperatures, which translates into system longevity. Fulton offers several burner and control options to best meet your application needs.

C model heater can be incorporated into packaged systems to provide optimal operating efficiency and reliability

Key Features

  • Modulating Gas, Oil, Dual Fuel & Low Emissions Gas Burners Available
  • Customized Designs and Controls Available
  • Minimal Floor Space Required

FT-A

Thermal Fluid / Hot Oil Heaters

For More Information:
Manufacturer's Site
Fulton-FT-A

Fulton’s vertical tubeless fuel-fired thermal fluid (hot oil) heater features a compact footprint for your thermal fluid heating application. It provides outputs from 207,000 BTU/hr to 1,740,000 BTU/hr and operating temperatures to 600°F (315°C).

Fuel Fired Thermal Heaters Ideal for start-up or small batch production

Key Features

  • Gas or Oil
  • Customized Controls

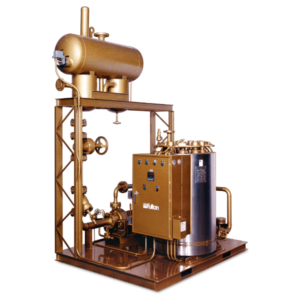

FT-N

Thermal Fluid / Hot Oil Heaters

For More Information:
Manufacturer's Site
Fulton-FT-N

Fulton’s vertical electric thermal fluid (hot oil) heater provides an electric heating source for high-temperature applications. It features top-mounted multiple low watt density elements. Heaters are available with operating temperatures up to 650°F (340°C) and outputs from 75,000 BTU/hr to 1,720,000 BTU/hr.

Key Features

  • Low Watt Density Elements Result in Low Film Temperatures and Long Element Life
  • Customized Controls (Class I, Div. I or Class I, Div. 2 Groups C&D of NEC code)
  • Customized Heaters Available

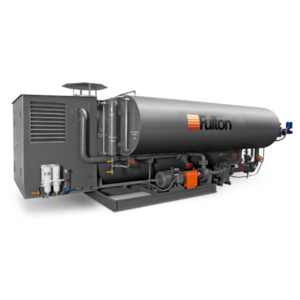

Hopkins

Thermal Fluid / Hot Oil Heaters

For More Information:
Manufacturer's Site
Fulton-Hopkins

The Hopkins heater is a high capacity 2-pass thermal fluid coil designed for ruggedness and long life. It utilizes a large radiant chamber and ample heating surface, lowering heat flux rates, improving thermal fluid life by reducing oxidation. This heater is available from 1,000,000 BTU/hr to 20,000,000 BTU/hr output and maximum operating temperatures up to 650°F (340°C).

This heater is designed, built, and tested in accordance with ASME Code Section I or ASME Code Section VIII, Div. 1. We offer Low NOx natural gas burners for 30 ppm NOx emissions compliance as a standard option.

Key Features

  • No High Pressure with Thermal Fluid
  • Multiple Fuel Options
  • Low maintenance

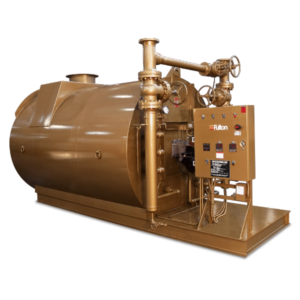

Alliance

Thermal Fluid / Hot Oil Heaters

For More Information:
Manufacturer's Site
Fulton-Alliance

Fulton’s horizontal coil thermal fluid (hot oil) heater features a 3-pass, multi-pipe design for high fluid velocities and low film temperatures. The heaters are available from 2,400,000 BTU/hr to 20,000,000 BTU/hr output and maximum operating temperatures to 650°F (340°C).

A variety of burner and control options are available to meet any application need

Key Features:

  • 3 Pass Design
  • Gas, Oil or Low Emissions Burners Available
  • Customized Controls
