Hurst Boiler - Vertical Boilers
4VT Cyclone Hot Water
Vertical Boilers
For More Information:
The compact, space saving vertical four-pass shock-proof design has no tubes to loosen or burn out. The Hurst Vertical Tubeless Boiler allows convenient access to “eye high” burner and solid-state controls for trouble free operation. Factory assembled and fully automatic. UL and ASME CSD-1 approved. Simple and inexpensive to install.
4VT Cyclone Steam
Vertical Boilers
For More Information:
The compact, space saving vertical four-pass shock-proof design has no tubes to loosen or burn out. The Hurst Vertical Tubeless Boiler allows convenient access to “eye high” burner and solid-state controls for trouble free operation. Factory assembled and fully automatic. UL and ASME CSD-1 approved. Simple and inexpensive to install.
Inspection Access
- The waterside openings are located in the most effective positions. The lower handholes offer far better access for both cleanout and inspection.
- These more functional locations avoid the obstructing handhole “tunnels” used by our competitors.
- The top opening offers a strategic view of the furnace crown sheet.
More Steam Storage
- Capacity to handle swing and spike loads – quick recovery – quick response.
- The larger steam-release surface is calmer, reducing carry over of unevaporated water.
- The resulting drier steam also reduces system scaling.
- In addition, dry steam helps to eliminate unnecessary extra condensate. Energy and fuel are saved. Longer life results.
Four-Pass Design
- The gases leaving the furnace are split four ways and travel through four individual serpentine fin passages to the stack outlet.
- Each quarter of the heat travels its own four-pass path (see illustration below).
- Heat transfers evenly to the fins and boiler shell, eliminating the metal stress due to uneven heat transfer common in other designs.
This illustration shows the progression of four gas paths around the circumference of the boiler shell.
- Primary-pass in furnace pipe.
- Second-pass follows path through fins along outside of shell.
- Third-pass follows path through fins along outside of shell.
- Fourth-pass follows path through fins along outside of shell, then merges together to exit exhaust stack.
Options and Alternatives
- We specialize in customizing your boiler. The Cyclone can be equipped to suit a wide variety of installations and specifications. We will help direct you to the most cost-effective models and features.
Simple Installation
- Unit is skid mounted for easy handling.
- Factory wired with wiring schematic included in the manual. Efficient and space saving layout.
Available Accessories
- The Cyclone is available in a complete package with an optional compact boiler-mounted feedwater system for a finished wired and piped, ready-to-fire unit.
- Blowdown separators are also available.
Turbulent Flame
- Heat is forced down, with the fire whirling and spinning against its natural flow. This pattern enhances recirculation, mixing and heat transfer, driving more energy into the water for greater fuel-to-steam efficiency.
Reliability
- The furnace crown is water cooled, eliminating troublesome refractory breakdown inherent inunits of inferior design.
- No fire tubes, water coils or “in the fire” mud rings to burn out.
“Eye High” Burner
- No step ladder is needed to service.
- No bending over or sitting on the floor.
- The air intake is located in the center of the unit so dust is not pulled from the floor.
Durability
- Fire does not pass under the bottom mud ring, eliminating the blistering that occurs with other designs.
- Cooler furnace gases are located at the bottom of the vessel where scale is most likely to occur. Baking of scale is alleviated.
Easier Service
- Fireside fin access in top and bottom.
- Access opening above feedwater inlet for easy cleaning.
- Thoughtfully engineered with the owner in mind.
- No heavy doors or covers to complicate service procedures.
Safety
- Electrical components are located away from the floor, helping eliminate the possibility of water coming in contact with electricity.
- Boiler built to ASME Section 1, High Pressure Boiler Code.CSD-1 approved.
- Burner/Boiler UL Packaged.

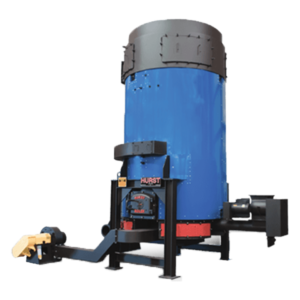

VHF Series
Vertical Boilers
For More Information:
The VHF was primarily designed to utilize high density, processed fuels like woods pellets. However, this system is capable of operating on coal and other high BTU content fuels. The VHF Hand Fired Hybrid boiler was also designed to be compact for existing building applications. In most cases, this hand fired style Solid Fuel Boiler design can be installed within the same footprint as your existing packaged gas/oil fired boiler.
The VHF Hybrid Boiler is available in 5 Base Model Choices:
50, 100,150, 200, 250 HP, in both Steam and Hot Water Systems with steam pressures of 15 PSI up to 300 PSI & 30 PSI Hot Water up to 60 PSI Hot Water.
Units are available in both Vertical Hand Fired & Vertical Stoker Fired configurations.
Due to the VHF Hybrid Boiler’s vertical modular design, it is ideally suited for export applications where container shipment may be applicable or necessary.
All Hurst VHF, Hand Fired, Hybrid and Stoker Fired boilers are designed to utilize the Carbon Neutral Energy benefits of Biomass fuels.
- Steam and hot water designs up to 250 boiler horsepower, or 8 MMBTU’s/HR
- Steam pressure to 150 PSI, hot water pressures up to 60 PSI
- Hand fired and stoker fired furnace
- Extra heavy duty boiler design for heavy duty performance and longer life span
- Ease of installation
- Low cost operation

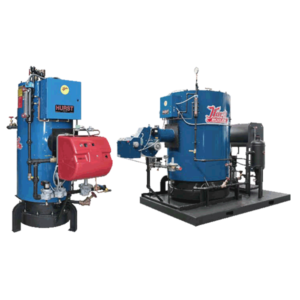

VIX Series
Vertical Boilers
For More Information:
Available from 10 to 80 HP, 30-125 BHP, 15-350 steam, 30-160 hot water.
- Totally new design industrial grade construction, 2 pass fire tube design with enhanced heat transfer features. The VIX Series can offer higher efficiencies than standard vertical boilers. It is 100% water-backed and built for years of reliable service.
- Smaller foot print More than 50% of standard vertical boilers.
- Easy access to burner and eye-high control panel. All valves and control located within reach.
- Removable Turn-a-round box Simply loosen the lug nuts and lower the section to inspect the system.
- Innovative vessel design Constant calm water levels with water-to-steam stabilization features.
- Large steam chamber with internal water separator insures “dry” high quality steam.
Skid Packages
Vertical Boilers
For More Information:
Purpose designed skid packages incorporate Hurst Performance Series boiler(s) with compatible “Factory Matched” auxiliary equipment minimizing over all footprint and shipping expense. In addition there will be a huge time and cost savings during installation phase.
Our boiler systems are custom designed and engineered for each customer’s specific needs by providing packaged modules that are factory attached to steel skids, pre-piped and wired, all interconnections including:
- Feedwater Tank/Pumps
- Water Softener
- Water Treatment
- Boiler Blowdown
Each package system is compact, easily transported and quickly installed. The system can be supplied from our standard range or specially built to the customers’ requirement. Fully automatic control can be included as well as monitoring devices, feedwater conditioning and all the necessary fittings, pipe work and electrical wiring.
