ThermoTech - Energy Recovery Wheels

Thermowheel TRThermowheel TFThermowheel TC

Thermowheel TR

Energy Recovery Wheel

For More Information:
Manufacturer's Site
Thermotech-ThermoWheel-TR-TF

The TR Series THERMOWHEEL® is the most reliable energy recovery wheel retrofit product available. We back every product with a standard 10 year warranty. After performing hundreds of field installations of other manufacturers’ wheels, the engineers at Thermotech have redesigned each of the major components to solve many of the problems we have encountered in the field.

Replacement Installations

Designed specifically to replace a wide range of existing heat wheels and energy recovery wheels, many that have performed poorly, or failed completely.

Thermowheel TR is a direct replacement for Berner, Cargocaire, Semco, Regenerative Heat Corp., Enreco, Governair, Flakt, Wing, Carnes, Heat Recovery Corporation, Munters, and others.

Shipped as Site-Assembled units.

Available in sizes up to 21’ in diameter.

  • High strength aluminum rotor
  • Variable or constant speed drive
  • Non-contact labyrinth seals
  • Gravity tensioned belt drive
  • Segmented media – multiple media options
  • 3Å molecular sieve desiccant
  • Built to last – minimum 25 years

Thermowheel TF

Energy Recovery Wheel

For More Information:
Manufacturer's Site
Thermotech-ThermoWheel-TR-TF

The TF SERIES THERMOWHEEL® is designed for new air handler applications in the 12,000 to 150,000 CFM range. One of the advantages of our unique design is that the unit can be shipped fully assembled or assembled in the field. If your facility requires a new heat recovery wheel or when limited access demands a field assembly of the wheel, the TF SERIES is the answer. The TF is available in sizes up to 21’ in diameter.

New Installations

Designed for new air handler applications requiring sensible or enthalpy (total energy) recovery in the 12,000 to 150,000 CFM range.

Can be installed either Factory-Assembled or Site-Assembled – to suit application requirements.

Available in sizes up to 21’ in diameter.

  • High-strength aluminum rotor
  • Variable or constant speed drive
  • Non-contact labyrinth seals
  • Gravity tensioned belt drive
  • New direct drive option
  • Segmented media – multiple media options
  • 3Å molecular sieve desiccant
  • Built to last – a minimum of 25 years

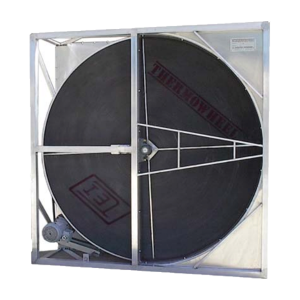

Thermowheel TC

Energy Recovery Wheel

For More Information:
Manufacturer's Site
Thermotech-ThermoWheel-TC

The TC SERIES THERMOWHEEL® is designed for new air handler applications in the 500 to 20,000 CFM range and is shipped fully assembled in an aluminum frame. The TC is an economical alternative to the TF series wheel.

New Installations

Designed for new air handler applications requiring sensible or enthalpy recovery in the 500 to 20,000 CFM range.

Available in an aluminum frame and shipped Factory-Assembled.

Maximize size: 92” in diameter.

• High strength 4-spoke aluminum rotor
• Variable or constant speed drive
• Non-contact labyrinth seals
• Gravity tensioned belt drive (on units 60″ to 92″)
• Long life external tapered roller bearings
• Segmented media
• 3Å molecular sieve desiccant
• Built to last – minimum 25 years
